Concept- Natural geometric shapes, that co-respond to their function and context. Making it easier for a community to unit and co-exist freely.

Design- The geometric shapes allow the construction technology to become subdue and clear to construct. The concept consists of five (5) individual components that come together to form one unit. Firstly, the internet tower. The tower is accessible through-out the day and night, including a safety gate. It will allow seating for social gatherings and networking. The second and third parts are made up of curved structures that resemble arms, and are positioned on either side of the tower. These structures act as an open plan seating area that allows visible sight all around the main structure. The idea for this structure is to enforce a logical social gathering during functions such as performances that could possible take place or too just casually sit and have lunch. The fourth structure is the stage. It is carefully placed in such a way that you can view it from the tower or curved seating area. This makes sure that the area is served as a public space. The fifth and last structure resembles a sort of chalet, but with semi open wall structures. This will be known as the meeting or studying area, as the noise level will be buffered by the brick tower. Making sure that if there is a performance on stage, you can still have a little privacy. The whole structure is designed in such a way as to allow as much seating as possible, using building material as furniture, while providing protection from the elements. The roofs are held up by gum poles and connectors. This will provide the addition to the urban fabric, a tower simple in its design and construction, that it is suitable for any environment.

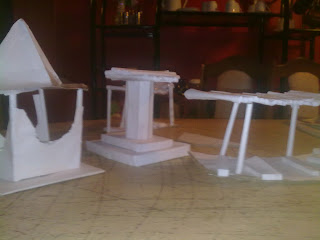

concept model, advanced.

stwv community hub precedent study

Community hub precedent study

Naphtali Mphaisha 211038547

CPUT 2^nd year STW and CTD project

COMMUNITY HUB –PHILIP DANIEL CONRADE

POAD 2010                            REF NO. 207006717

Concept/ Plan/ Joinery and Development.

Sections and Elevations

 Working models

FUNCTIONAL PRECEDENT

-          What is the main technological idea of the structure/building

   Conradie used gum poles, concrete, and brick to create an outdoor like experience for this community hub. The poles are connecting with the use of pole connecters to provide the primary structure. The secondary structure is connected in such a way that it provides stability, but also acts as a roof, floor and natural furniture. Concrete foundations lay underground, which the bottom of the primary poles are casted into. The walkway is concrete and leads to the brick tower. The size of the whole hub is important as it relates to scale of the concept and idea of my own community hub.

-          How does the technological idea contribute to the overall idea of the structure

   Intent- Philip Daniel Conradie:” The project requests the creation of a community hub, a place promoting social interaction, education and entertainment. The intent is to create a place where this culmination of different functions can merge into an interesting addition to the urban fabric an addition which blends into context”.

   Concept- Philip Daniel Conradie:” An epicentre, a landmark, a knot in the contextual fabric from where information bulges and explodes outwards. Always learning. Always growing.
